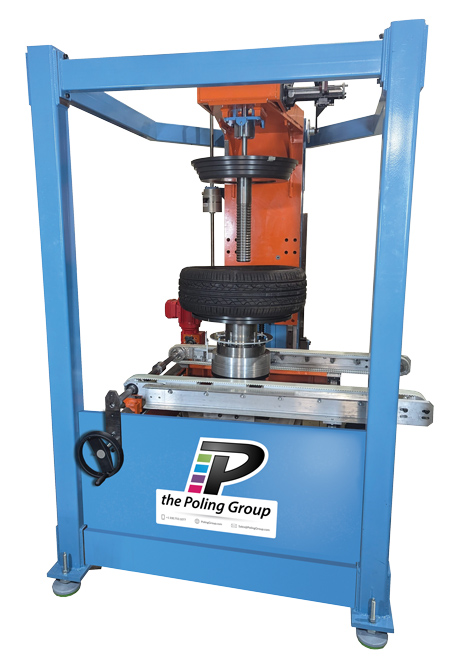

The Poling Group DB-111 Dynamic Balance Testing machine has the capacity to balance test all tires processed by our CX111 TU machine.
* Mandatory guard rails not pictured in photography to show machine details
* Machine is CE Certified
* Mandatory guard rails not pictured in photography to show machine details* Machine is CE Certified
Standard Features
- TTOC6 Machine Controller
- TDAQ - Tire Data Acquisition
- Timing Belt Center Conveyor
- Anti-Mischuck System
- Quick Inflate System
- Variable Speed Spindle Motor
- Precision Spindles and Bearings
- Loadwheel Carriage Servo Motor
- Piezo electric loadcells
Machine Specs
Outside Diameter
Min 22 in
Max 42 in
Max 42 in
558 mm
1067 mm
1067 mm
Bead Diameter
Min 14 in
Max 30 in
Max 30 in
356 mm
762 mm
762 mm
Rim Width
Min 3 in
Max 17.5 in
Max 17.5 in
Cross Section Width
Max 18.5 in
470 mm
Tread Width
Max 17.5 in
445 mm
Inflation Pressure
Max 85 psi
586 kPa
Tire Weight
Max 150 lb
68 kg
Spindle Speed
Max 120 RPM
*Optional 400 RPM
Rolling Radius
Min 10 in
254 mm
Shipping Weight
Approx 26,000 lbs
11,793 kg
