The Hasbach Division Run Flat Tire Tester is available to test Run Flat Tires for Passenger Car/ Light Trucks.Hasbach Division lab testers come in single station or multiple station designs. Multiple Station Machines use one loadwheel to test more than one tire / size at the same time.
The Run Flat Tire Tester can perform the following tests at up to four stations.
- High Speed
- Durability
The Run Flat Tire Tester can log the following measurements :
- Durability
- Elapsed Distance
- Load and Speed
- Optionally measures tire internal, tread and ambient temperatures, rolling radius and circumference, and deflection
* Machine is CE Certified

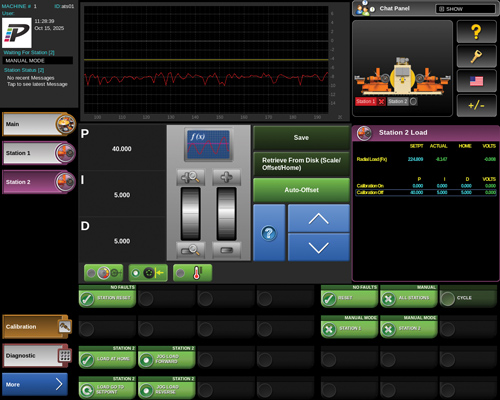

PID Plot
A diagnostic tool used to evaluate the performance of each PID control loop (e.g. radial loading, slip, etc.)
Allows visualization of real-time PID values, including target (setpoint), analog output, and analog input feedback
Equipped with zoom-in/zoom-out and scrolling capabilities to provide optimal performance visibility

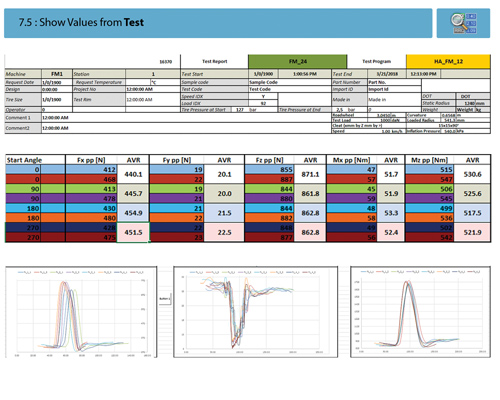

Reports and Recipes
Test reports available in Microsoft Excel format.
Recipe editor included on the TTOC and available via web browser (no need to create recipes in Excel!)
Easily edit, add or delete recipes in a single interface.
Re-order steps easily with click and drag.
Robust validity checking. Ensures your recipes are valid as you create or modify them.

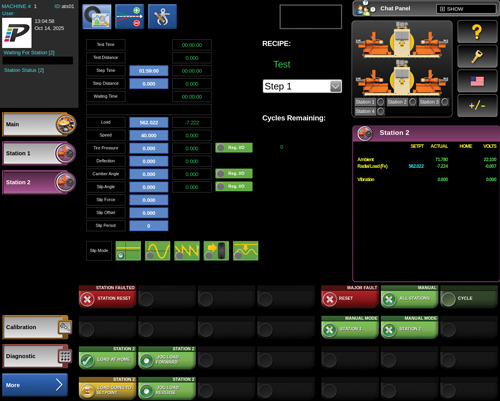

Testing Station Screen
Station view allows user to view and modify setpoints used for manual testing
Track slip modes easily as they change with indicators
Monitor actual values for various measurements in real time
Standard Features
- TTOC6 Controller and Software
- Frictionless loadwheel carriage
- Slip angle assembly
- Camber assembly
- Lateral force measuring
- Servo-driven spindles
- PLC controller Siemens / Allen Bradley
- Tire burst detection unit
- Run-Flat Tire test program and hardware
Optional Equipment
- Machine guards
- Automated data collection system
- Drum brake
- Machine guards
- Precision test rims
- 6 axes load cell
- Force & Moment Test Program
- Tire inflation and regulation unit
RFT Specifications
Outside Diameter
Min 15.7 in
Max 43.3 in
Max 43.3 in
400 mm
1,100 mm
1,100 mm
Rim Width
Min 3 in
Max 17 in
Max 17 in
Cross Section Width
Max 19.6 in
500 mm
Tread Width
Max 17.7 in
450 mm
Inflation Pressure
Max 95 psi
655 kPa
Spindle Speed
Max 100 mph
160km/h
Max Test Load
Max 4,500 lbf
2,000 daN
Loadwheel Dimensions
2 diameters available
2 diameters available
dia.1 : 67.1 in
dia.2 : 78.7 in
width 19.7 in
dia.2 : 78.7 in
width 19.7 in
dia.1 : 1,707 mm
dia.2 : 2,000 mm
width 500 mm
dia.2 : 2,000 mm
width 500 mm
