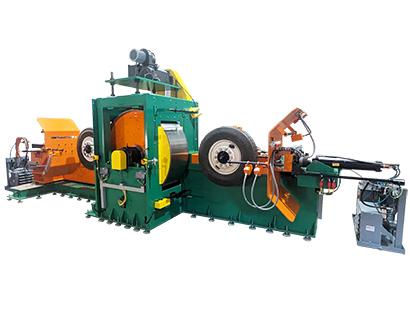

The Hasbach Division Endurance Tester is available in three sizes to either test Motorcycle, Passenger Car/ Light Truck, or Truck / Bus tires.
Hasbach Division lab testers come in single station or multiple station designs. Multiple Station Machines use one loadwheel to test more than one tire / size at the same time.
The Laboratory Endurance Tester can perform the following tests :
The Endurance Tester can log the following measurements :
* Machine is CE Certified
Hasbach Division lab testers come in single station or multiple station designs. Multiple Station Machines use one loadwheel to test more than one tire / size at the same time.
The Laboratory Endurance Tester can perform the following tests :
- High Speed
- Durability
- Bead
- Camber & Slip Angle
The Endurance Tester can log the following measurements :
- Tire Elapsed Distance
- Tire Load and Speed
- Tire Radius Circumference
- Tire Deflection
- Tire Ambient Temperature
* Machine is CE Certified
Standard Features
- Frictionless Radial Load Assembly Platform (Patented)
- Hydraulic System
- PLC controller Siemens / Allen Bradley
- Tire burst detection unit
- Tire inflation and speed regulation unit
Optional Equipment
- Calibration equipment
- Automated data collection system
- Camber assembly
- Drum brake
- Lateral side force
- Machine guards
- Precision test rims
- Rolling resistance unit
- Slip angle assembly
PC/LT Endurance
Outside Diameter
Min 15.7 in
Max 43.3 in
Max 43.3 in
400 mm
1,100 mm
1,100 mm
Rim Width
Min 3 in
Max 17 in
Max 17 in
Cross Section Width
Max 21.6 in
550 mm
Tread Width
Max 15.7 in
400 mm
Inflation Pressure
Max 95 psi
655 kPa
Spindle Speed
Max 310 mph
500km/h
Max Test Load
Max 11,000 lbf
5,000 daN
Loadwheel Dimensions
2 diameters available
2 diameters available
dia.1 : 67.1 in
dia.2 : 78.7 in
width 19.7 in
dia.2 : 78.7 in
width 19.7 in
dia.1 : 1,707 mm
dia.2 : 2,000 mm
width 500 mm
dia.2 : 2,000 mm
width 500 mm
Motorcycle Endurance
Outside Diameter
Min 15.7 in
Max 39.3 in
Max 39.3 in
400 mm
1,000 mm
1,000 mm
Rim Width
Min 3 in
Max 11 in
Max 11 in
Cross Section Width
Max 11.8 in
300 mm
Tread Width
Max 11.8 in
300 mm
Inflation Pressure
Max 72 psi
500 kPa
Spindle Speed
Max 75 mph
120km/h
Max Test Load
Max 2,248 lbf
1,000 daN
Loadwheel Dimensions
dia. 67.1 in
width 11.81 in
width 11.81 in
dia. 1,707 mm
width 300 mm
width 300 mm
Truck/Bus Endurance
Outside Diameter
Min 23 in
Max 63 in
Max 63 in
600 mm
1,600 mm
1,600 mm
Rim Width
Min 6 in
Max 16 in
Max 16 in
Cross Section Width
Max 21.6 in
550 mm
Tread Width
Max 15.7 in
400 mm
Inflation Pressure
Max 145 psi
1,000 kPa
Spindle Speed
Max 125 mph
200km/h
Max Test Load
Max 2,200 lbf
1,000 daN
Loadwheel Dimensions
2 diameters available
2 diameters available
dia.1 : 67.1 in
dia.2 : 78.7 in
width 19.7 in
dia.2 : 78.7 in
width 19.7 in
dia.1 : 1,707 mm
dia.2 : 2,000 mm
width 500 mm
dia.2 : 2,000 mm
width 500 mm
